Testing Java with Jython and PyUnit

JUnit, the unit test framework written by Erich Gamma and Kent Beck, is not the only alternative for unit testing in the Java environment. This article provides a simple demonstration on how to use Jython, PyUnit and Ant to unit test a Java project. To provide better elements of comparison, the example provided is the same as the one available in the JUnit distribution: MoneyTest.

This article assumes that the reader has some basic knowledge of unit testing, Java, Jython or Python and possibly Apache Ant. For more information about each of those technologies, see section Resources at the end of this article.

JyUnit, companion code for this article, is a rewrite of the unit test example provided with JUnit (MoneyTest). It also includes an Ant file (build.xml) to facilitate the integration and automation of Jython and the unit test process.

All the software components mentioned in this article are already available and heavily used.

This article is also available in French.

Requirements - Installation

In order to try JyUnit, you need:

  • Java 2 SDK, Standard Edition:
    • Download and install the Java Development Kit (JDK) (Version 1.4.2 or superior).
    • Create an environment variable JAVA_HOME, pointing to the installation path of the JDK. This simplifies the installation of Apache Ant.
  • Apache Ant:
    • Apache Ant is only needed to execute the tests from Ant and to demonstrate the possibilities of Jython integration with Ant. Without Ant, you can perform the tests using scripts .bat for Windows or .sh for UNIX/Linux.
    • Download and install Apache Ant.
    • Add the directory bin of the ant directory installation to your PATH (For instance: C:\ant\bin, if Ant is installed in C:\ant on Windows).
  • Jython:
    • Download and install Jython (recommended version: Jython 2.1).
    • Create an environment variable JYTHON_HOME set to the installation directory of Jython. Some JyUnit files are using this environment variable.
    • In the Jython registry, located in the install directory of Jython, modify the property python.security.respectJavaAccessibility and set it to false. Read section Accessibility for more details about this change.
  • JUnit:
    • Download and install JUnit.
    • If you extract the package junit3.8.1.zip in the directory C:* on Windows, you will get a new directory C:\junit3.8.1. JUnit is not needed to take advantage of the concept described in this article, but for demonstration purpose the unit test files included in the JyUnit package are precisely using the example provided with JUnit, Money*. This to facilitates the comparison between the Jython solution and the Java solution to perform unit testing.
  • JyUnit (Companion code for this article):

    • Extract the archive jyunit02.zip or jyunit02.tgz in the JUnit installation directory in order to have the new directory jyunit at the same level as the directory junit. This does not impact any JUnit files.

    • As an example of JUnit installed on Windows in C:\junit3.8.1, you get a new directory: C:\junit3.8.1\jyunit.

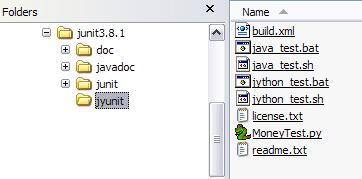

Directories and files architecture

JyUnit Files Description

File Name Description
build.xml Ant project file
java_test.bat Windows batch to start the Java unit tests (JUnit)
java_test.sh Shell script to start the Java unit tests (JUnit)
jython_test.bat Windows batch to start the Jython unit tests (PyUnit)
jython_test.sh Shell script to launch the Jython unit tests (PyUnit)
license.txt License for JyUnit files
MoneyTest.py Re-write of the file MoneyTest.java in Python (Jython)
readme.txt Readme file

Java Accessibility

The Jython registry file is located at the root of the installation directory of Jython. Set python.security.respectJavaAccessibility to false in the file registry, allows Jython scripts to gain access to non-public fields, methods and constructors of Java objects:

...
# Setting this to false will allow Jython to provide access to
# non-public fields, methods, and constructors of Java objects.
#python.security.respectJavaAccessibility = true
python.security.respectJavaAccessibility = false
...

This setting is not recommended for production applications, but is very useful in the context of unit tests. Without this setting, for each unit-test, you get the following error:

Traceback (most recent call last):
File "MoneyTest.py", line 55, in setUp
self.fMB1 = MoneyBag.create(self.f12CHF, self.f7USD)
AttributeError: class 'junit.samples.money.MoneyBag' has no attribute 'create'

The class junit.samples.money.MoneyBag is not declared public, therefore the access is limited to classes from the same package, junit.samples.money in the example. This is not only limited to the test implementation in Python, this is a normal Java behavior. If the Java class MoneyTest did not belong to the same package as MoneyBag, we would obtain the following error when compiling MoneyTest.java:

MoneyTest.java:9: junit.samples.money.MoneyBag is not public in junit.samples.money;
cannot be accessed from outside package
import junit.samples.money.MoneyBag;
                           ^

This demonstrates one interesting fact of using Jython to test Java application while keeping the testing code fully separated to the production code. With some work it is possible to obtain a similar behavior in Java, either by using the Java Reflection API, or some additional components for JUnit such as JUnit-addons or by simply having the test part of the same Java package (most commonly used).

Unit Tests

After preparing the environment as explained above, you should be able to: Perform the original JUnit test by launching java_test.bat or java_test.sh.

  • Perform the same unit test written in Jython, by using jython_test.bat or jython_test.sh. The scripts execute the tests twice: once with traces and once without trace.
  • Finally, execute the Jython test from an Ant build file.

For more information related to Money andMoneyTest used to illustrate the unit tests examples, read the article JUnit Test Infected: Programmers Love Writing Tests, available from the JUnit web site.

Original Unit Tests (JUnit)

The scripts java_test.bat or java_test.sh, allow to launch the unit tests provided with JUnit:

C:\junit3.8.1\jyunit>java_test
......................
Time: 0.03
OK (22 tests)

Jython Unit Test (PyUnit)

Jython allows to perform unit testing without dependency with JUnit because it includes PyUnit the Python unit test framework. You can verify the presence of the module unittest.py located in the subdirectory Lib of your Jython installation directory. The scripts jython_test.bat or jython_test.sh launch the Jython unit tests:

C:\junit3.8.1\jyunit>jython_test
===================
Test without traces
===================
......................
----------------------------------------------------------------------
Ran 22 tests in 0.040s
OK
================
Test with traces
================
{[12 CHF][7 USD]} *2 == {[24 CHF][14 USD]} ... ok
{[12 CHF][7 USD]} negate == {[-12 CHF][-7 USD]} ... ok
testBagNotEquals (__main__.MoneyTest) ... ok
{[12 CHF][7 USD]} + [14 CHF] == {[26 CHF][7 USD]} ... ok
{[12 CHF][7 USD]} - {[14 CHF][21 USD] == {[-2 CHF][-14 USD]} ... ok
{[12 CHF][7 USD]} + {[14 CHF][21 USD]} == {[26 CHF][28 USD]} ... ok
testIsZero (__main__.MoneyTest) ... ok
[12 CHF] + [7 USD] == {[12 CHF][7 USD]} ... ok
testMoneyBagEquals (__main__.MoneyTest) ... ok
testMoneyBagHash (__main__.MoneyTest) ... ok
testMoneyEquals (__main__.MoneyTest) ... ok
testMoneyHash (__main__.MoneyTest) ... ok
{[12 CHF][7 USD]} - [12 CHF] == [7 USD] ... ok
{[12 CHF][7 USD]} - {[12 CHF][3 USD]} == [4 USD] ... ok
[12 CHF] - {[12 CHF][3 USD]} == [-3 USD] ... ok
testPrint (__main__.MoneyTest) ... ok
[12 CHF] + [14 CHF] == [26 CHF] ... ok
[14 CHF] + {[12 CHF][7 USD]} == {[26 CHF][7 USD]} ... ok
[14 CHF] *2 == [28 CHF] ... ok
[14 CHF] negate == [-14 CHF] ... ok
[14 CHF] - [12 CHF] == [2 CHF] ... ok
testSimplify (__main__.MoneyTest) ... ok
----------------------------------------------------------------------
Ran 22 tests in 0.090s
OK

The Jython tests without trace display the same information as JUnit and are executed with the command :

set CP=.;..;C:\jython\jython.jar
java -cp %CP% org.python.util.jython MoneyTest.py

Note: The CLASSPATH with value.;..;C:\jython\jython.jar is just an example. It assumes that Jython is installed under Windows in the directory C:\jython and that the JyUnit package was extracted accordingly to the instructions above such that junit\samples\money can be accessed in the CLASSPATH with "..". To launch the test with traces, execute the following command:

set CP=.;..;C:\jython\jython.jar
java -cp %CP% org.python.util.jython MoneyTest.py -v

In this case, each method comment or docstring will be displayed. For example, for the test testBagSubtract:

def testBagSubtract(self):
  """{[12 CHF][7 USD]} - {[14 CHF][21 USD] == {[-2 CHF][-14 USD]}"""
  expected = MoneyBag.create(Money(-2, "CHF"), Money(-14, "USD"))
  self.assertEquals(expected, self.fMB1.subtract(self.fMB2))

PyUnit displays:

{[12 CHF][7 USD]} - {[14 CHF][21 USD] == {[-2 CHF][-14 USD]} ... ok

If there is no docstring, PyUnit displays the method name, its class and the result:

testBagNotEquals (__main__.MoneyTest) ... ok

The method testBagNotEquals is implemented in the file MoneyTest.py as follow:

def testBagNotEquals(self):
  bag = MoneyBag.create(self.f12CHF, self.f7USD)
  self.assertFalse(bag.equals(Money(12, "DEM").add(self.f7USD)))

In MoneyTest.py, in order to stay as close as possible to the reference implementation in Java (MoneyTest.java), the Java method comments are re-written under the form of docstring. Methods without comment in the Java file result in methods without docstring in MoneyTest.py.

Ant Integration

The Ant file build.xml includes only the Jython unit tests. The tests are the same as the ones executed with the scripts. The build.xml example demonstrates two ways to easily integrate Jython in an Ant build file (without a Jython Ant task).

To launch the tests, assuming that the Ant binary files are in your PATH, at the command line, type:

C:\junit3.8.1\jyunit>ant
Buildfile: build.xml
init:
test.call:
jython.call:
[java] ......................
[java] ------------------------------------------------------------
[java] Ran 22 tests in 0.060s
[java] OK
...

The tests are performed four times:

  1. Without trace from the AntCall Jython task.
  2. With trace from the AntCall Jython task.
  3. Without trace from the MacroDef Jython task.
  4. With trace from the MacroDef Jython task.

AntCall is an Ant tasks part of the built-in Ant tasks. The version using MacroDef is more elegant but MacroDef is only available since Ant version 1.6.

Read the file build.xml provided with the sample source code to see usage examples of AntCall and MacroDef.

Conclusion

The Extreme Programming wave raising in the late nineties is phasing out a little. Nevertheless, some components of this development approach are well alive and evolving. In particular, the unit-tests, revealed by XP are now fully integrated in modern integrated development environments (Visual Studio, NetBeans, Eclipse...). You can find unit-test companion libraries for most of the programming languages and some languages even include unit-testing in their syntax (D Programming Language for example). The existing libraries have also been extended to address some specific issues and environments: HTTPUnit, XMLUnit... How valuable are Jython and PyUnit to test Java application knowing the large panel of unit-tests tools already available? PyUnit used with Jython does not offer an graphical user interface (GUI). There is no specific Ant task. The Java integrated development environments are mainly basing the unit testing on JUnit. At a first glance, Jython an PyUnit seem to appear more limited than JUnit to unit-test Java application.

But, despite those apparent weaknesses, Jython and PyUnit offer some interesting benefits:

  • Simplicity: Jython and PyUnit comply with Keep It Simple Stupid (KISS). Unit tests are extremely valuable, but they should remain simple in order to have the main development effort focused on the final product rather than the unit tests: does the user need the unit tests?
  • Rapid Application Development (RAD): At the cost of getting familiar with the Python language syntax (The goal of this article is not to start any religion war for or against a specific programming language), the simplicity, clarity of syntax and absence of compilation are some of Jython compelling points to develop and perform Java unit-tests.
  • PyUnit ships with Jython: There is no need to install other tools but Jython.
  • Code separation: As demonstrated in the examples above, it is easy to keep a total independence between the code to be tested and the unit-tests.
  • Easy integration: Although not available by default in the popular Java integrated development environments, it is rather easy to call Jython from Ant and to drive unit tests. Regarding the IDE's, projects such as Coyote and JyDT should shortly provide satisfaction in that domain for respectively NetBeans and Eclipse.

Some points listed above are not limited to Jython and PyUnit. There are other serious candidates to unit test Java applications. Among the choices, you can combine Jython and JUnit, Groovy and JUnit, BeanShell and JUnit... Those are just some examples and each of those combinations could be the topic for a full separate article.
